NAD ORIGINAL GPS MODULE

NGU-700

GPS module with u-blox EVA-7M

The smallest! ! "GPS module with antenna"

Feature

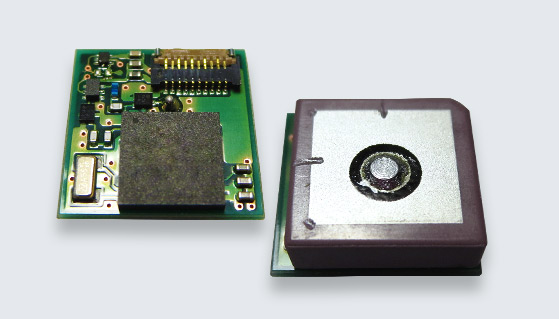

Ultra small 14 mm × 14 mm antenna integrated type
· Ultra compact GPS reception module with INPAQ × 12 mm patch antenna
· Adopted 10 pin FPC connector
Top class high sensitivity -160 dBm
· High performance & high sensitivity u-blox module "EVA-7M"
QZSS (Quasi-Zenith Satellite) compatible
· QZSS to supplement and reinforce GPS. Optimized for use in Japan and East Asia

Specification

Product name
NGU-700
Receiving method
56 channels u-blox 7 positioning engine
Receiving frequency
code: GPS / QZSS L1 C / A code
Receive sensitivity
Cold start: -148 dBm
Recapture: -160 dBm
Follow-up: -162 dBm
Positioning time
Cold start: 29 seconds
Hot start: 1 second
Positioning accuracy
2.5 m CEP alone
SBAS 2.0m CEP
Protocol
NMEA UBX Binary RTCM
Power supply voltage
1.4 V to 3.6 V
Specification temperature range
-40℃ ~ 85℃
Power Consumption
Continuous Mode: 41 mW / 1.4 V
Power Save Mode: 9 mW / 1.4 V
Outer dimensions
14mm × 14mm × 6mm

Evaluation method

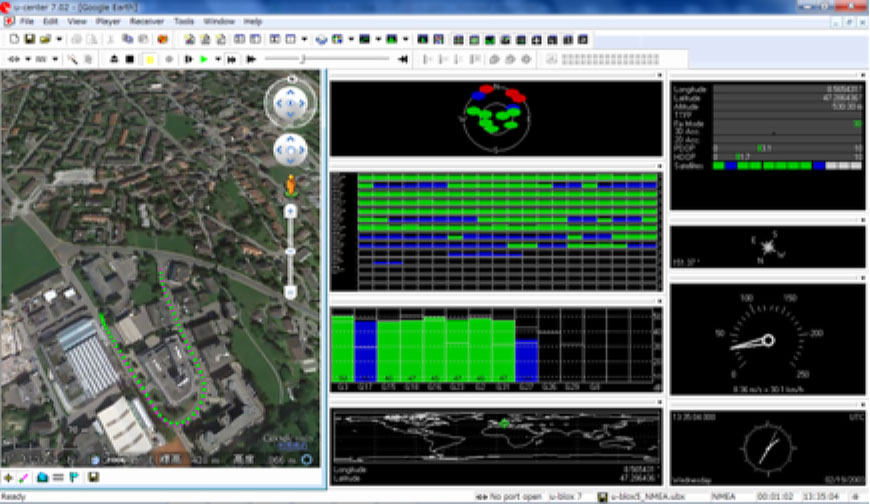

u-blox official software "u-center" GPS evaluation software used
* We also have an evaluation kit for testing

Example of use

Automotive application
Car navigation system, radar detector, vehicle theft tracking (prevention), drive recorder, vehicle operation control system, construction vehicle anti-theft system (tracking) system, etc.
Mobile applications
Digital camera, Handy terminal, Portable game machine, Mobile measuring equipment, etc.
Leisure use
Golf passenger car, radio control equipment, golf navigation, climbing navigation etc.
Crime prevention and welfare
Electric wheelchair, wandering elderly exploration, theft tracking etc.
Other
Pet exploration, animal ecology survey, radio weather sonde etc.
  • # This product specifications are subject to change without prior notice for improvement.
  • # We are not responsible for problems caused by third party's industrial property rights such as drawings described in this document.
    Also, in the case where circuit examples are described in the document, since these are representative application examples as reference for use, we are not responsible for the damage caused by the use of these circuits.
  • # It is forbidden to use the contents of this document for other purpose such as description or duplication without our permission.
